Description

Same capacity but much smaller size than lead acid battery
No memory,feel free to charge when you need,maintenance-free.
3500 times cycle life at standard charge/discharge rate
REMA/ANDERSON plug for choice
Applicabale -20~55℃,and smart BMS provide high or low temerature protection
Support buzzer alaram while SOC<10% or min volt of singel cell<3.05V
CAN/RS485/RS232 communication for choice
Perfect safety performance,NO leakage,No swell
Protection board, provides protection against overcharge, and short circuit, through monitoring single string of cells

Features

 LiFePO4 Battery:

3500+ life cycle, environmental friendly.

 Secure Multiple Protection:

This battery pack has four protection - OverCharge Protection, Discharge Protection, Short Circuit Protection, and Overcurrent Protection.

 Light weight.

Compare to lead acid battery, lighter weight with same or above power!


Specifications



Item 24V 500Ah 48V 500Ah 48V 500Ah 48V 500Ah 24V 200Ah 24V 200Ah 24V 200Ah
Battery type LiFePO4 LiFePO4 LiFePO4 LiFePO4 LiFePO4 LiFePO4 LiFePO4
BMS Included Included Included Included Included Included Included
Forklift LindeStill R 50-10L LindeStill R 20-16P LindeStill RX 20-16 TCM FB 20-7 LindeStill EGV - 12 LindeStill
EXV - 12
LindeStill
EGV - 132
Battery size 830х435х630 mm 820х630х630 mm 990х525х630 mm 1020х780х490 mm 400х290х570 mm 660х150х690
mm
400х290х570
mm
Battery G.W. 620Kg 869 kg 890 kg 930kg 187 kg 190 kg 187 kg
Port for forklift PEMA 160A PEMA 160A PEMA 160A Anderson SB 350A 600V PEMA 80A PEMA 80A PEMA 80A
Port for charger GermanyREMA320 GermanyREMA320 GermanyREMA320 GermanyREMA320 GermanyREMA320 GermanyREMA320 GermanyREMA320
Charging Indicator With With With With With With With
Handle With With With With With With With
Accessories Anderson SB 50A 600V connector, Max. Power 500W Anderson SB 50A 600V connector, Max. Power 500W Anderson SB 50A 600V connector, Max. Power 500W Anderson SB 50A 600V connector, Max. Power 500W Anderson SB 50A 600V connector, Max. Power 500W Anderson SB 50A 600V connector, Max. Power 500W Anderson SB 50A 600V connector, Max. Power 500W
With standard charger, automatic recovery from deep discharging cut-off With standard charger, automatic recovery from deep discharging cut-off With standard charger, automatic recovery from deep discharging cut-off With standard charger, automatic recovery from deep discharging cut-off With standard charger, automatic recovery from deep discharging cut-off With standard charger, automatic recovery from deep discharging cut-off With standard charger, automatic recovery from deep discharging cut-off
Working temp. -30 ° C to + 40 ° C -30 ° C to + 40 ° C -30 ° C to + 40 ° C -30 ° C to + 40 ° C -30 ° C to + 40 ° C -30 ° C to + 40 ° C -30 ° C to + 40 ° C

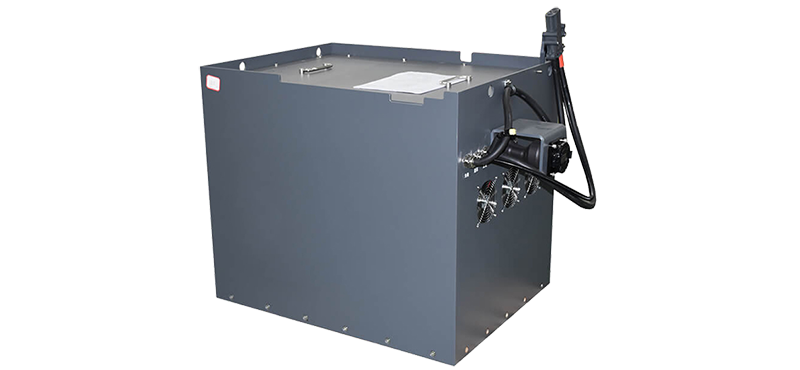

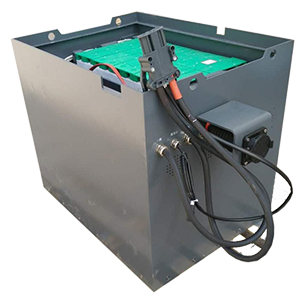

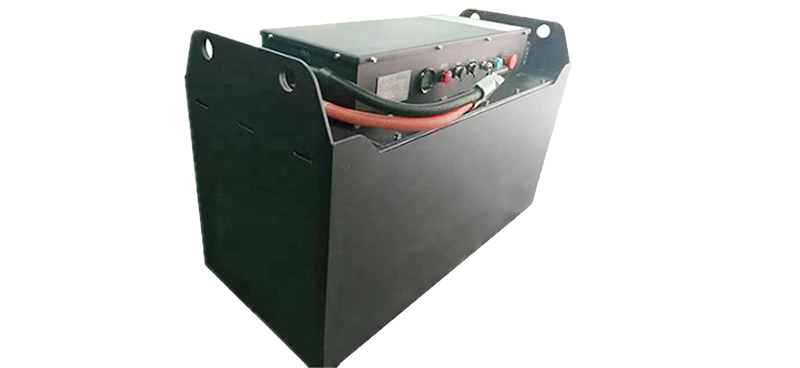

Pictures

  •
  •
