12V 145Ah LFP Lifepo4 Custom Battery Pack for EV Backup


  • Nominal Voltage: 12V
  • Rated Capacity: 145Ah
  • Battery Cycle: 3500+
  • Max Constant Discharge Current: 150A
  • Peak current: 300A
  • Charge voltage: 14.6V
  • Discharge cut off voltage : 10.0V
  • Charger: 14.6V 72A
  • Battery Weight: 19.5kg
  • Battery Dimensions: 30.6 x 17.2 x 22.5cm

Advantages

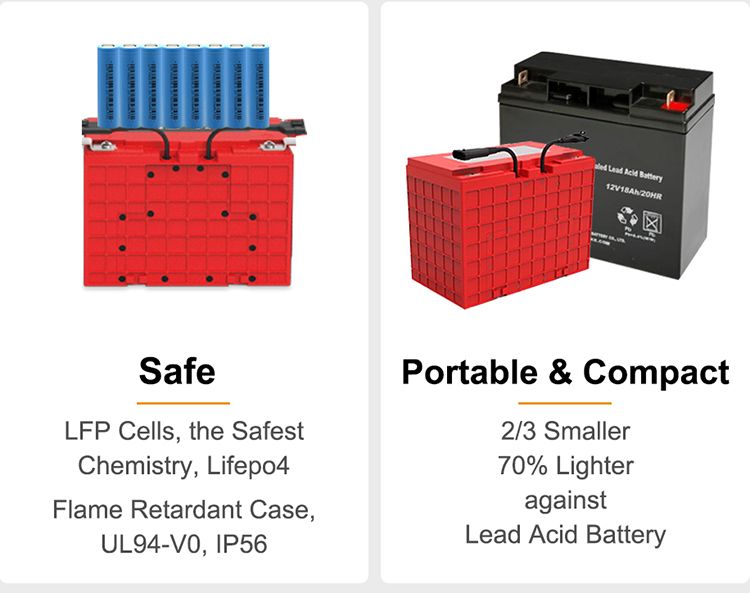

1. Safety: LFP cells

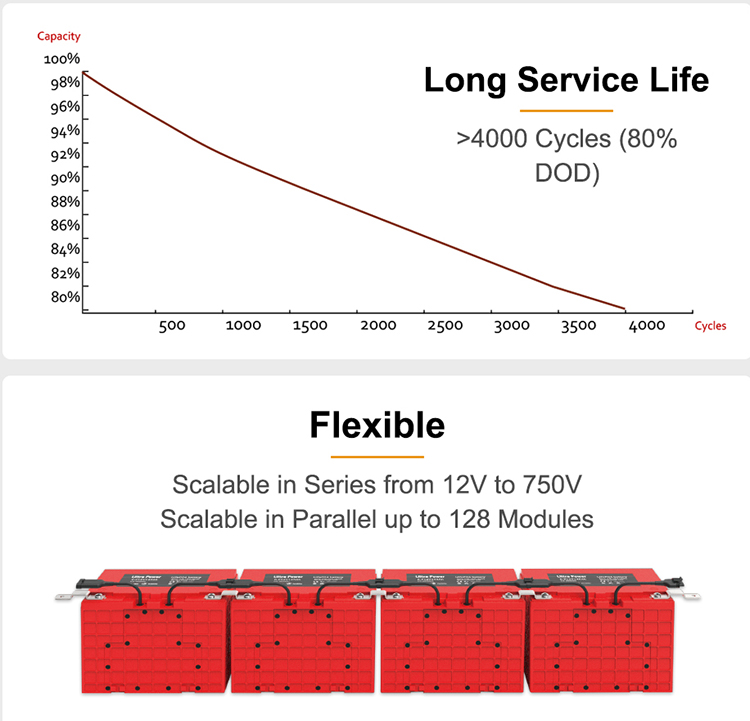

2. Durability: 3500+ cycles(100% DOD)
3. Robust casing: Flame-retardded plastic
4. Modularity scalability and flexbility: scalable in series from 12V to 750V, scalable in parallel to up to 126 modules, Easy installation, easy maintenance, easy to expand
5. Small and lighter 1/2 the size of a lead acid battery

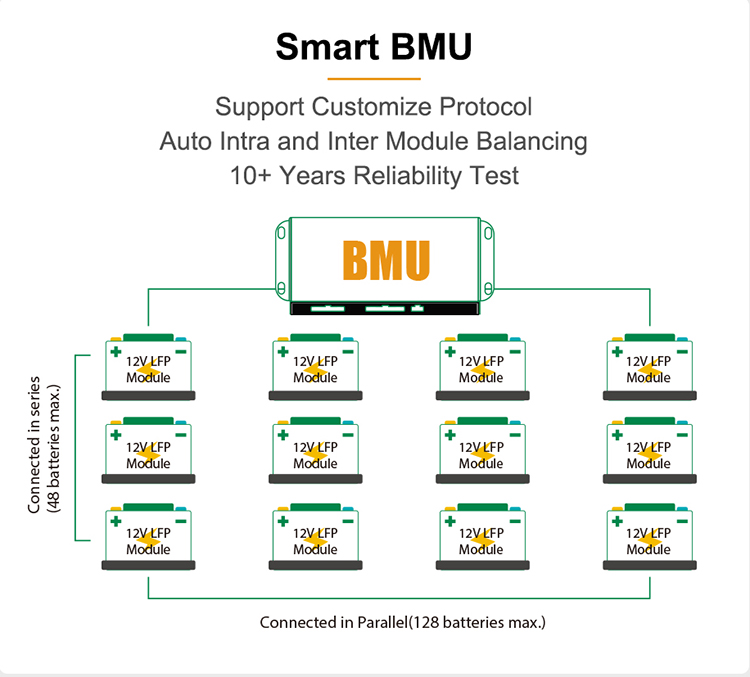

6. Smart battery management: customize protocol is supported, Automatic intra and inter module balancing

Application


1. RV
2. AGV
3. Forklift
4. Yacht
5. E-rickshaw

    Specification

    Nominal Voltage 12.8V
    Nominal Capacity (C/2, 23°)  145Ah
    Standard Discharging (25°C) Max Cont Current 150A
    Peak Load Current (30 Sec) 300A
    Cut-off Voltage 10.0V
    Standard Charging Charge Voltage 14.6V
    Recommended Current C/2 72A
    Charge Time C/2 2.5H
    Terminals, Female-Thread M8 x 1.25
    Operating Temperature
    Charging 0 ~ 45°C
    Discharge -20 ~ 60°C
    Operating Humidity 5% to 95%, non-condensing
    Water/Dust Resistance IP56
    Storage Temperature < 1 Month ------ -20-45°C
    1-3 Months ------ -20-35°C
    3-12 Months ------ -20-25°C

    Details




    Protocol

    1. External display screen
    2. RS485/232 CAN
    3. UART
    4. Bluetooth
