Description

Safety: CE ROHS UN38.3 approved, built-in BMS, none fire, none explosive

Clean and Green energy, no toxic material contained

Powerful: By China 5C rate cell

Long life cycle: after 2000 cycles, there is 85% remaining capacity

No memory effect,highly efficient charge anytime, no reduction of capacity

Operation temperature: -20~60°C

Easy replacement for lead acid battery

Good performance at high temperature and high temperature resistance

Low self-discharge rate: < 3% monthly

Features

 High energy density, small footprint, short construction period, strong environmental adaptability

Standardized components, modular architecture, easy for expansion

 Battery module within the layered stack design, with more than 10 years of long design life

Efficient battery module and system cooling design

 The use of international advanced IGBT and intelligent power module, with high power fast adjustment capability

BMS battery management system with SOC automatic calibration and high current active balance function, combined with the perfect operation control and management strategies to achieve accurate and efficient management

Specifications


Voltage
V
Capacity
AH
Energy
KWh
Item Life Cycles
DOD70%
Warranty
Months
Max Output
W
Size:mm
L-W-H
Approximately
Weight kg
 Case Remark
  50 0.64 Battery 3500 60 730W 197-165-169 5.2 Plastic Just single battery
in Use,
NO to be in series or parallel
  Charger   18 14.6V
10A

12.8
(12V)
100 1.28 Battery 3500 60 1500W 330-173-216 11.5 Plastic
Charger   18 300W
200 2.56 Battery 3500 60 2000W 520-238-218 21.5 Plastic
Charger   18 400W
300 3.84 Battery 3500 60 2000W 520-238-218 31.5 Plastic
Charger   18 500W
25.6
(24V)
100 2.56 Battery 3500 60 2000W 520-267-228 21.5 Plastic Just single battery
in Use,
NO to be in series or parallel
Charger   18 600W
200 5.12 Battery 3500 60 3000W 520-267-228 43.0 Plastic
Charger   18 800W
300 7.68 Battery 3500 60 3000W TBD 75.0 Steel
Charger   18 900W
51.2
(48V)
100 5.12 Battery 3500 60 5000W 520-267-228 43.0 Plastic Just single battery
in Use,
NO to be in series or parallel
Charger   18 1000W
200 10.24 Battery 3500 60 5000W 871x362x394 89.0 Steel
Charger   18 1500W
300 15.36 Battery 3500 60 5000W TBD 130.0 Steel
Charger   18 2000W

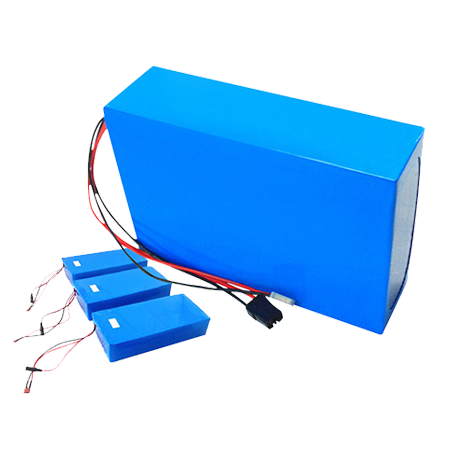

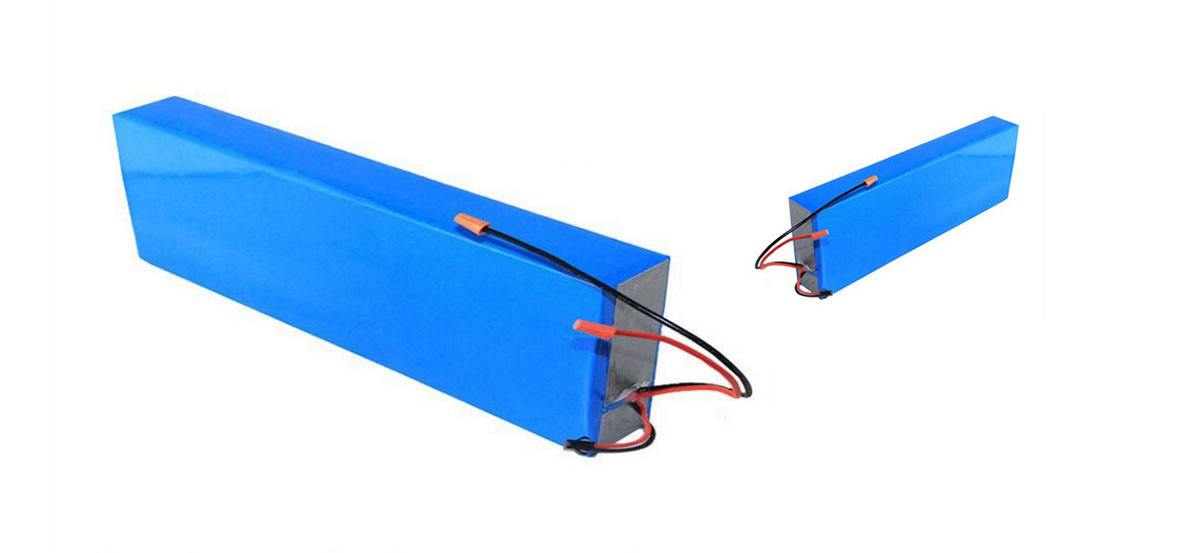

Pictures

  •
